SMQ..G: Damper actuators, 16 Nm, 7 s
SMQ..G: Damper actuators, 16 Nm, 7 s
Showing all 2 resultsSorted by popularity

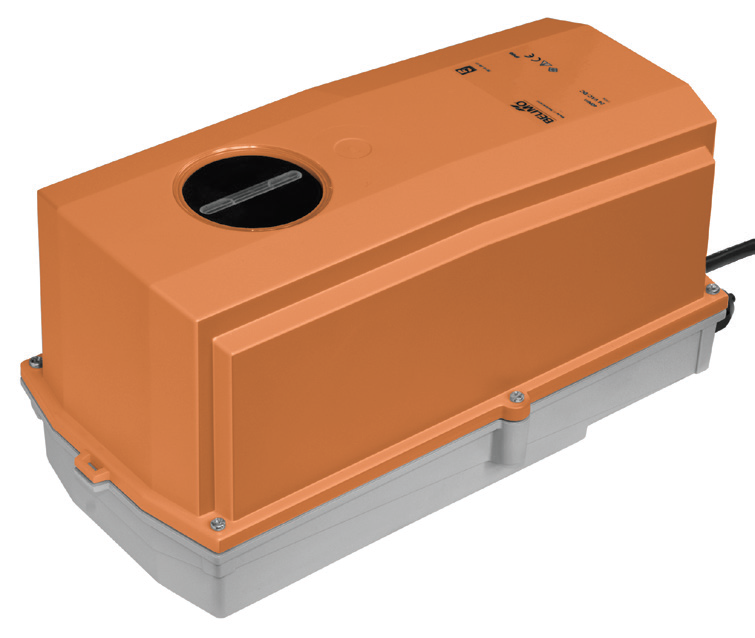

Damper actuator in the IP66 protective housing for adjusting dampers in industrial plants and in technical building installations
• Air damper size up to approx. 3.2 m²
• Nominal torque 16 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close (unsuitable for 3-point controls)
• Running time motor 7 s
• Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater ex works)
Damper actuator in the IP66 protective housing for adjusting dampers in industrial plants and in technical building installations
• Air damper size up to approx. 3.2 m²
• Nominal torque 16 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 7 s
• Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater ex works)
