Showing 17–27 of 27 resultsSorted by popularity

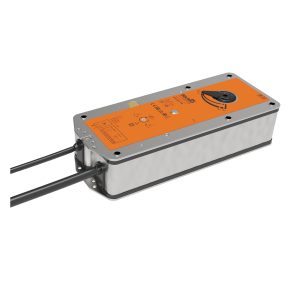

Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems.
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm,
continuous hollow shaft

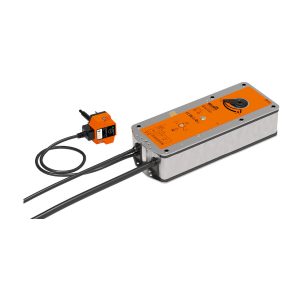

Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems, with connection plugs
for simple integration in control and monitoring
systems or bus networks via communication
and power supply units
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems, with connection plugs
for simple integration in control and monitoring
systems or bus networks via communication
and power supply units
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems.
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
Spring-return actuator for fire and smoke
dampers 90° in ventilation and air-conditioning
systems
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
Spring-return actuator for fire and smoke
dampers 90° in ventilation and air-conditioning
systems
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft

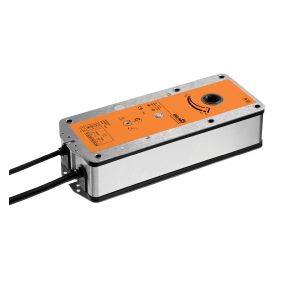

Spring-return actuator for fire and smoke
dampers 90° in ventilation and air-conditioning
systems
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 48 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
Spring-return actuator for fire and smoke
dampers 90° in ventilation and air-conditioning
systems, available for connection to the control
unit BSIA24-48/-R for pulse triggering
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 48 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft

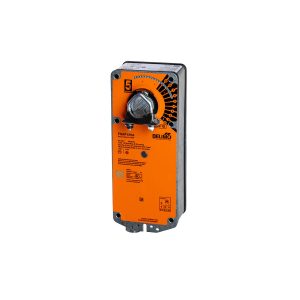

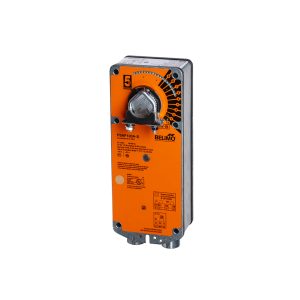

Fail-Safe actuator used in typical Fire and Smoke
damper applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC 120 V
• Control On/Off
• @ 350°F [177°C] for 30 min
• 25 s, <15 s Motor/Fail-safe
• 2x SPST
