22UTH-110X,BELIMO,Outdoor Humidity, Temperature Sensor with weather shield
Outdoor Humidity, Temperature Sensor with
weather shield
Active humidity and temperature sensor
(0…10 V) for outside applications. The
radiation shield protects the outside sensors
from rain and radiated heat. With the curved
shape and color of the plates air flow is able
to move across the sensors to keep
radiated temperatures from rooftops and
surrounding surfaces from affecting
humidity readings.
สั่งซื้อสินค้า
สินค้าที่เกี่ยวข้อง

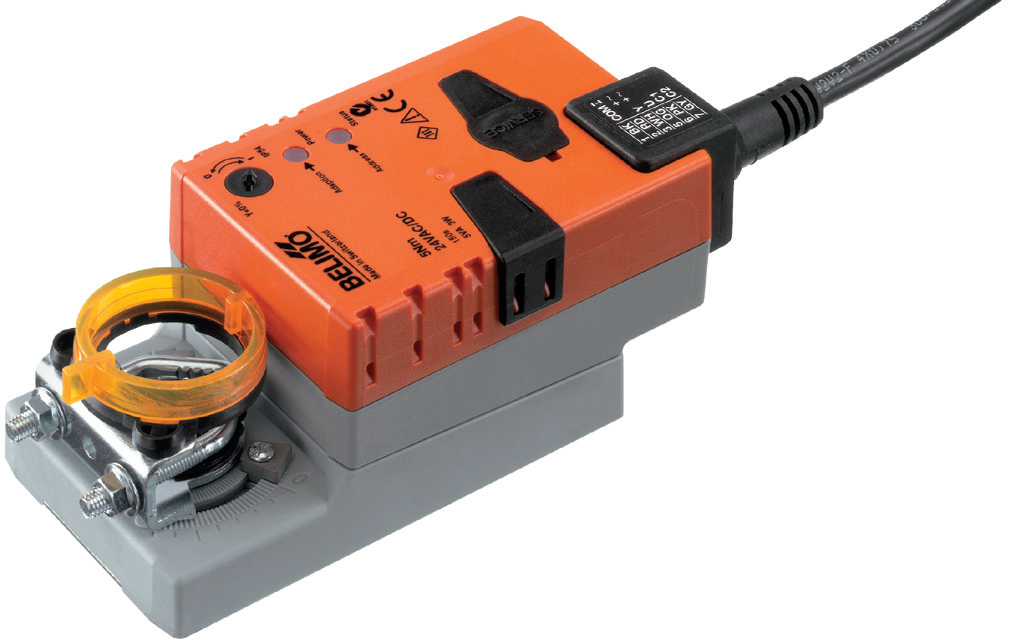

Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• with integrated auxiliary switch
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• With integrated feedback potentiometer
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
• With integrated auxiliary switch

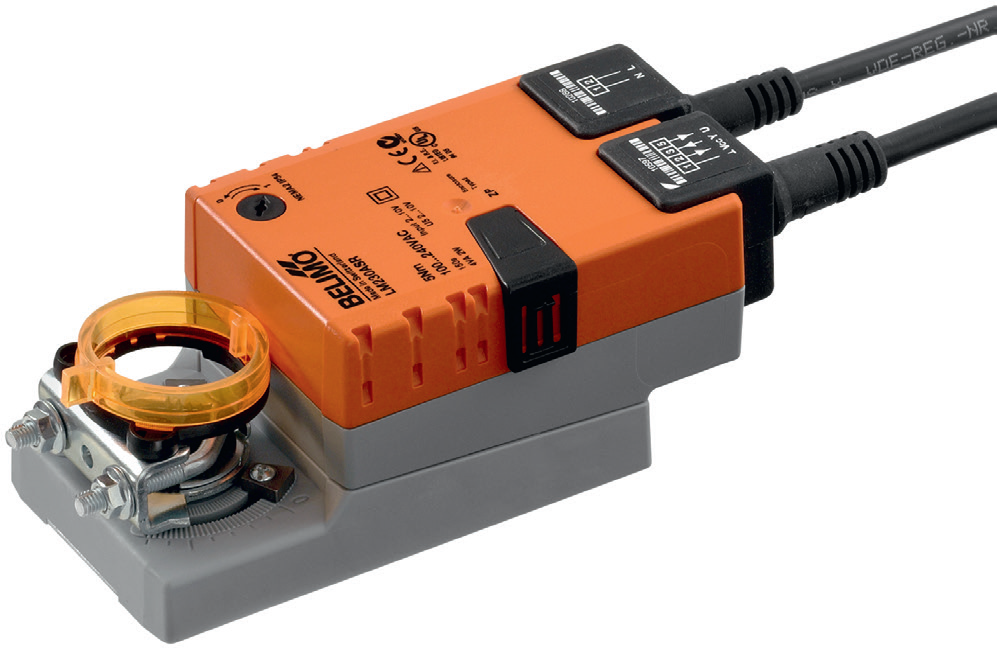

Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 35 s
