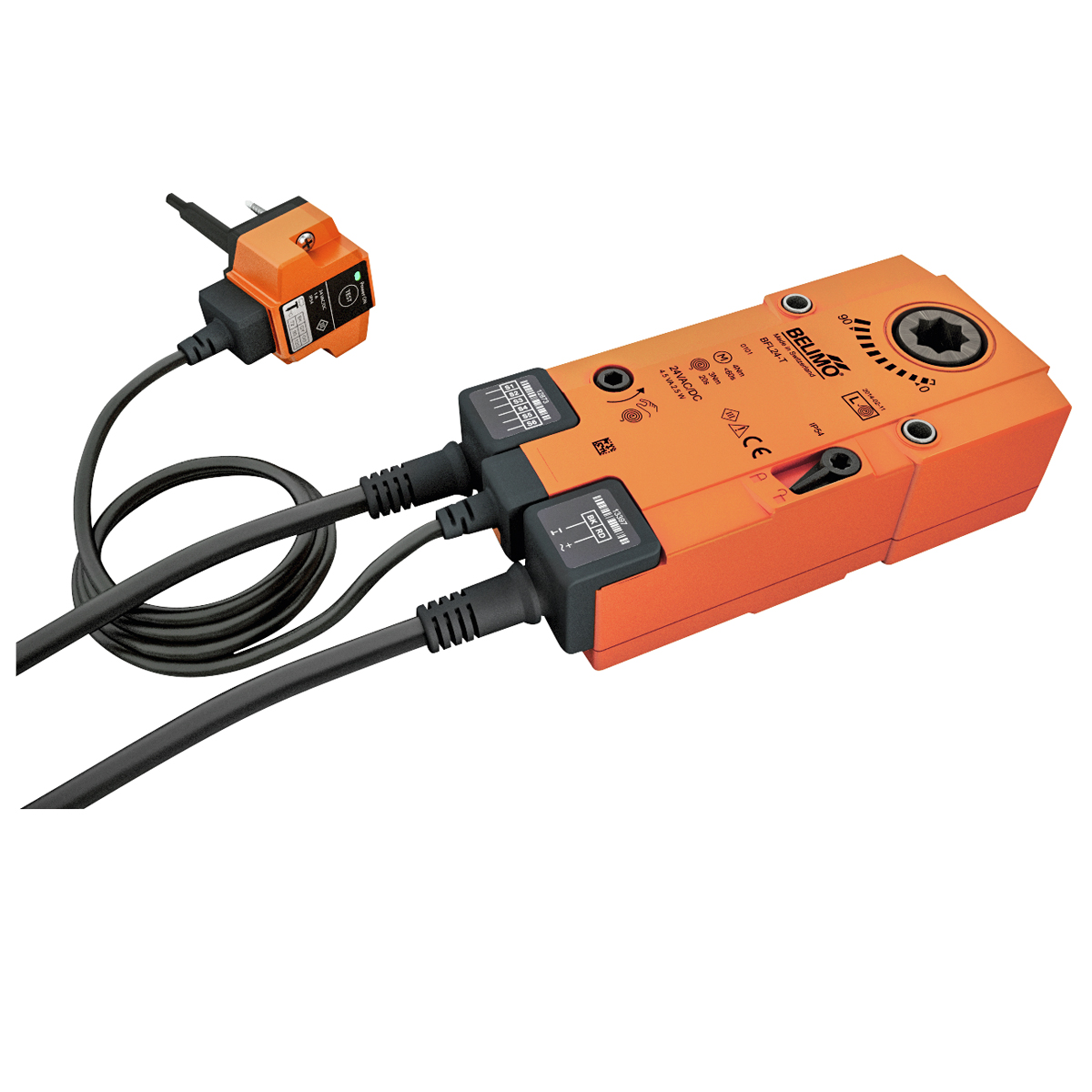

BFL24-SR-T, Fire damper actuator, 4 Nm, AC/DC 24 V, 2…10 V
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems.
• Torque motor 4 Nm / 3 Nm
• Nominal voltage AC/DC 24 V
• Control modulating
• Mechanical interface Form fit 12×12 mm,
continuous hollow shaft
สั่งซื้อสินค้า
| Emergency control function | Fire damper actuator |
|---|---|
| Nominal torque | |
| Nominal voltage | AC/DC 24 V |
| Control type | DC 2…10 V |
สินค้าที่เกี่ยวข้อง
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• With integrated auxiliary switch
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• With integrated auxiliary switch
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
• With integrated auxiliary switch
