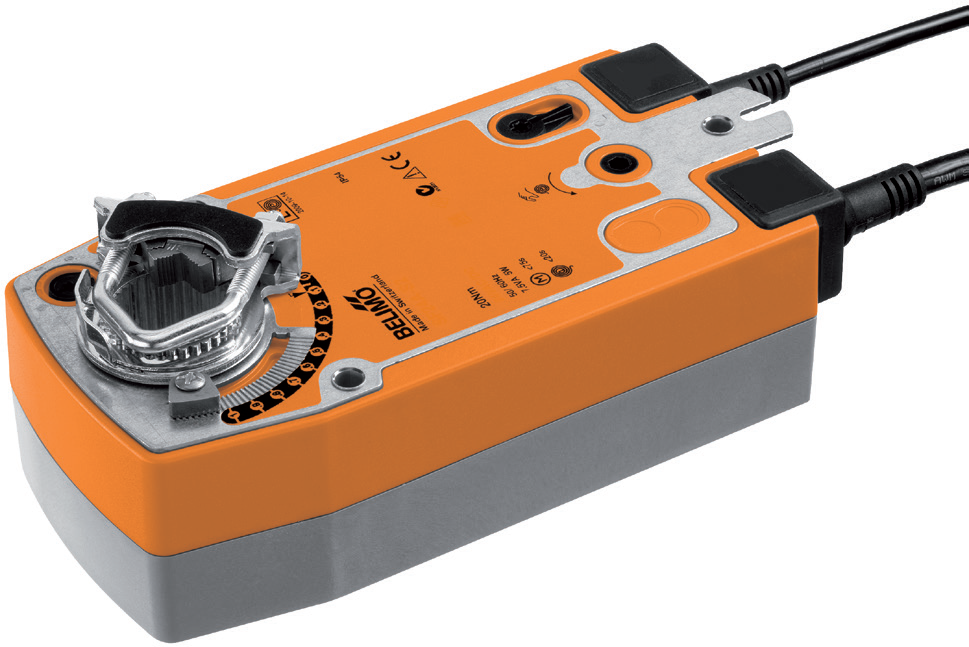

NFA-S2 Spring-return actuator, Open-close, AC 24…240 V / DC 24…125 V, 10 Nm, with 2 auxiliary switches
Spring-return actuator with emergency control function for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC 24…240 V / DC 24…125 V
• Control Open-close
• with 2 integrated auxiliary switches
สั่งซื้อสินค้า
| Emergency control function | Spring-return actuator |
|---|---|
| Air damper size up to approx | 2 m² |
| Nominal torque | 10 Nm |
| Nominal voltage | AC 24…240 V / DC 24…125 V |
| Control | Open-close |
