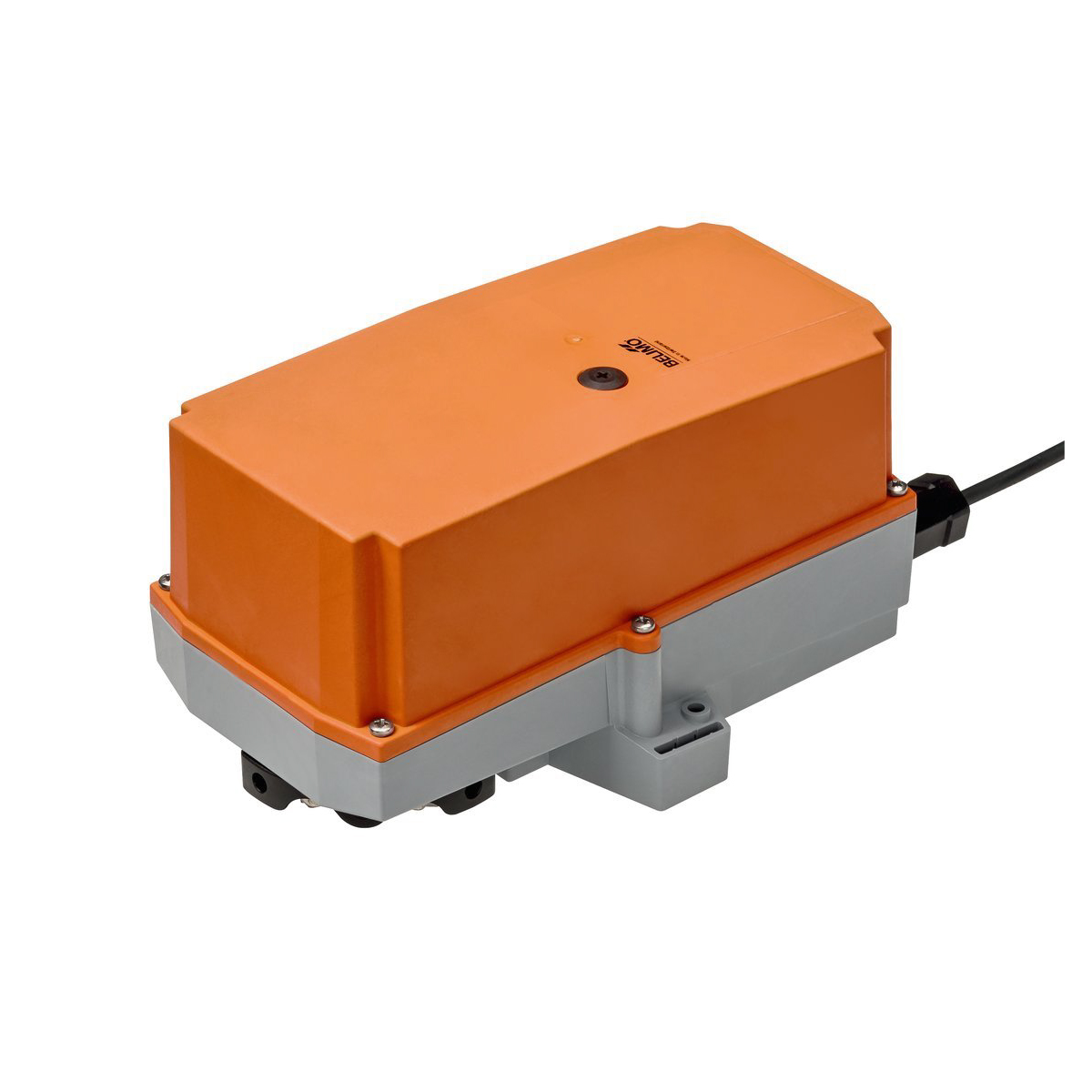

NKQ24P-1, Rotary actuator (RobustLine) fail-safe, 6 Nm, AC/DC 24 V
RobustLine rotary actuator fail-safe and
extended functionalities for adjusting
dampers in technical building installations
• Air damper size up to approx. 1.2 m²
• Torque motor 6 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Running time motor 4 s
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
สั่งซื้อสินค้า
| Emergency control function | Rotary actuator (RobustLine) fail-safe |
|---|---|
| Air damper size up to approx | 1.2 m² |
| Nominal voltage | AC/DC 24 V |
| Nominal torque | |
| Control type | Open-close |
