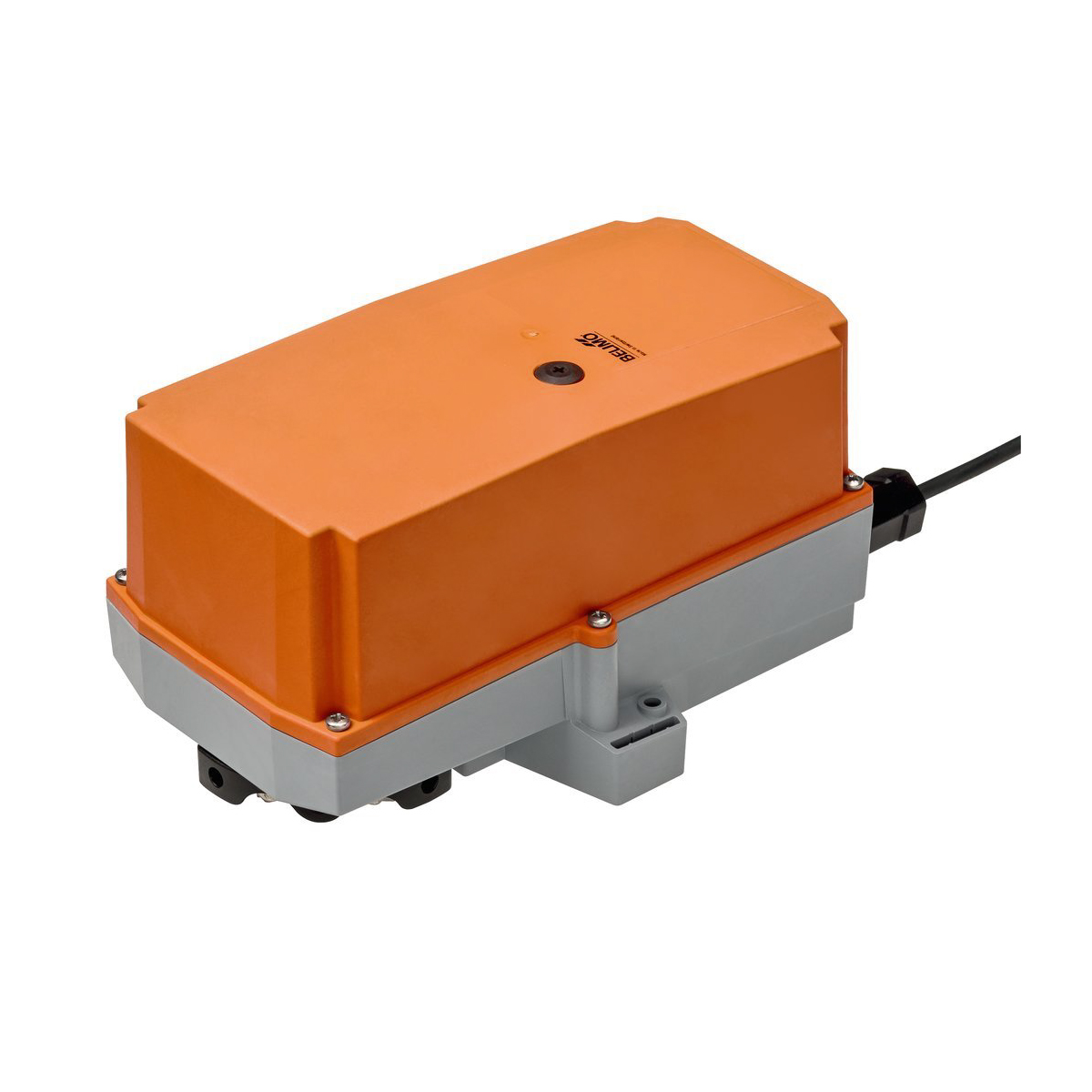

NM24P,RobustLine damper actuator,10 Nm, AC/DC 24 V
RobustLine damper actuator for adjusting
dampers in HVAC plants, comparable industrial
plants and technical building installations
• Air damper size up to approx. 2 m²
• Torque motor 10 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close, 3-point
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
สั่งซื้อสินค้า
| Emergency control function | RobustLine damper actuator |
|---|---|
| Air damper size up to approx | 2 m² |
| Nominal voltage | AC/DC 24 V |
| Nominal torque | |
| Control | Open/close, 3-point |
สินค้าที่เกี่ยวข้อง
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
• With integrated auxiliary switch
