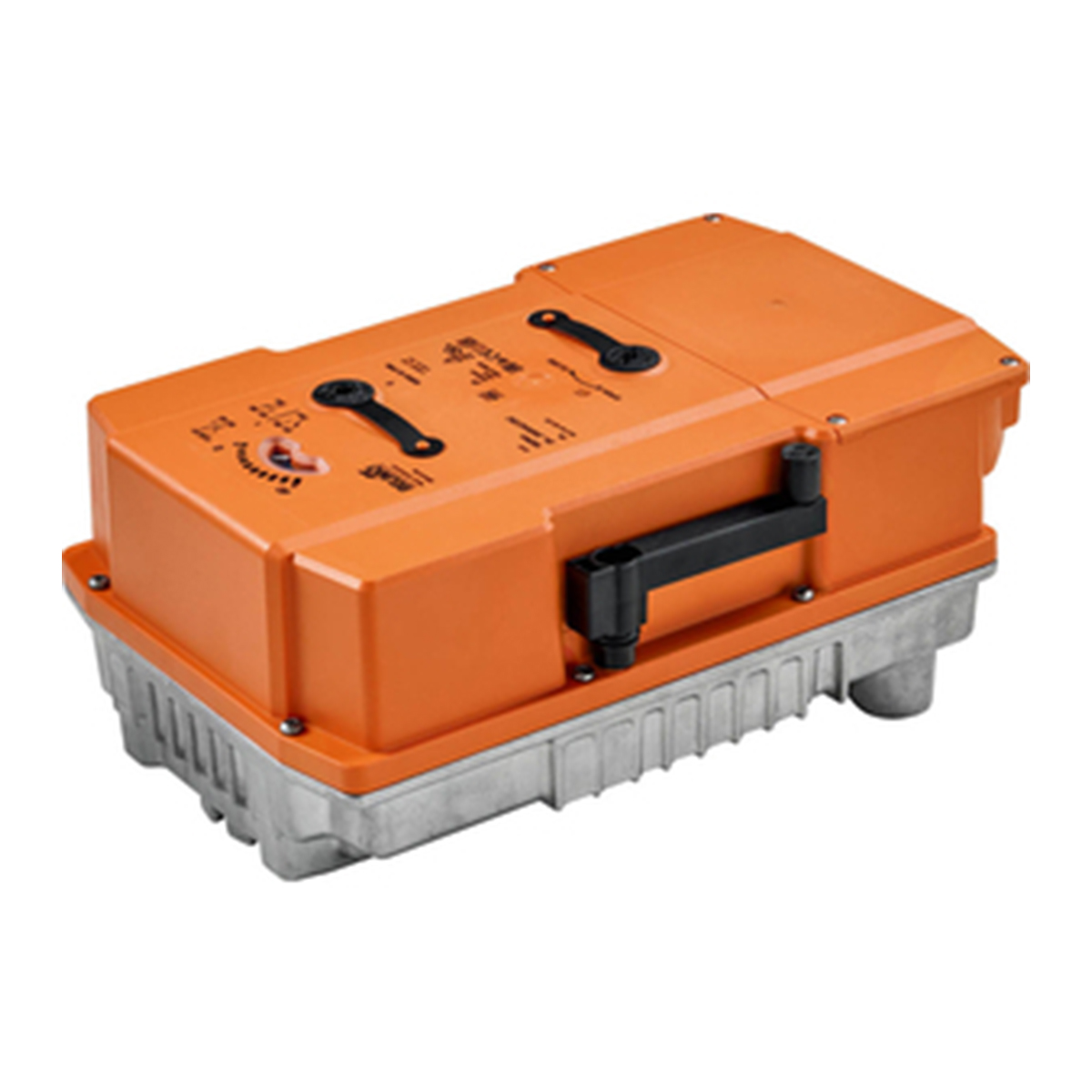

PMCA-BAC-S2-T Rotary actuator, 160 Nm, AC 24…240 V / DC 24…125 V
Communicative damper actuator in IP66/67
protective housing for adjusting dampers in
HVAC plants, comparable industrial plants and
technical building installations
• Torque motor 160 Nm
• Nominal voltage AC 24…240 V / DC 24…125 V
• Control modulating, communicative, hybrid
• With 2 integrated auxiliary switches
• Conversion of sensor signals
• Communication via BACnet MS/TP, Modbus
RTU, Belimo-MP-Bus or conventional contro
สั่งซื้อสินค้า
| Emergency control function | Rotary actuato |
|---|---|
| Nominal voltage | AC 24…240 V / DC 24…125 V |
| Nominal torque | |
| Control | modulating, communicative, hybrid |
สินค้าที่เกี่ยวข้อง
EV..R+KBAC
Characterised control valve with sensor-operated flow rate or power control, power and energy-monitoring function, 2-way, Internal thread, PN 16 (Energy Valve),
• Nominal voltage AC/DC 24 V
• Control modulating, communicative
• For closed cold and warm water systems
• For modulating control of air-handling and heating systems on the water side
• Ethernet 10/100 Mbit/s, TCP/IP, integrated web server
• Communication via BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, Belimo MP-Bus or conventional control
• Design life SuperCaps: 15 years
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• With integrated auxiliary switch
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• Running time motor 35 s
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 35 s
