FSAFB24-SR, Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V
Fail-Safe actuator used in typical Fire and Smoke
damper applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC/DC 24 V
• Control Modulating
• @ 250°F [121°C] for 30 min
• 75 s, <20 s Motor/Fail-safe
FSAF24A-S, Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V
Fail-Safe actuator used in typical Fire and Smoke
damper applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC/DC 24 V
• Control On/Off
• @ 350°F [177°C] for 30 min
• 25 s, <15 s Motor/Fail-safe
• 2x SPST
FSAF24A, Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V
FSAF230A-S, Fire damper actuator, 20 Nm, Spring return, AC 230 V
Fail-Safe actuator used in typical Fire and Smoke
damper applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC 230 V
• Control On/Off
• @ 350°F [177°C] for 30 min
• 25 s, <15 s Motor/Fail-safe
• 2x SPST
FSAF230A, Fire damper actuator, 20 Nm, Spring return, AC 230 V
Fail-Safe actuator used in typical Fire and Smoke
damper applications
• Torque motor 180 in-lb [20 Nm]
• Nominal voltage AC 230 V
• Control On/Off
• @ 350°F [177°C] for 30 min
• 25 s, <15 s Motor/Fail-safe
BF24-C232, Fire damper actuator, 20 Nm, AC/DC 24 V
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems.
• Torque motor 20 Nm / 20 Nm (see Service life)
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
BF230-C232, Fire damper actuator, 20 Nm, AC 230 V
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems.
• Torque motor 20 Nm / 20 Nm (see Service life)
• Nominal voltage AC 230 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft

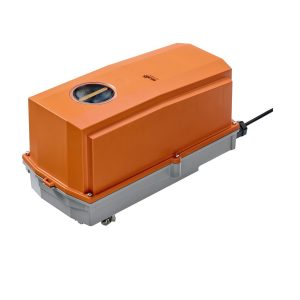

SF24G-SR-L, Rotary actuator fail-safe, 20 Nm, AC/DC 24 V, 2…10 V
Modulating rotary actuator fail-safe in the
IP66/67 protective housing for adjusting
dampers in HVAC plants, comparable industrial
plants and technical building installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC/DC 24 V
• Control modulating 2…10 V
• Position feedback 2…10 V
• Optimum weather protection for use outdoors
(for use in ambient temperatures up to –40°C,
there is a separate actuator available with builtin heater)
SM24P-SR, RobustLine damper actuator, 20 Nm, AC/DC 24 V, 2…10 V
Modulating RobustLine damper actuator for
adjusting dampers in HVAC plants, comparable
industrial plants and technical building
installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC/DC 24 V
• Control modulating 2…10 V
• Position feedback 2…10 V
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
SM24P-S, Robust Line damper actuator, 20 Nm, AC/DC 24 V
RobustLine damper actuator for adjusting
dampers in HVAC plants, comparable
industrial plants and technical building
installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close, 3-point
• with integrated auxiliary switch
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation

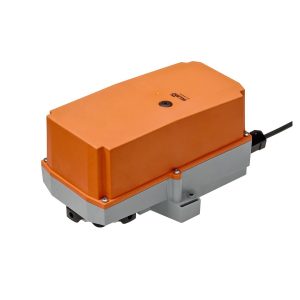

SM24P, Robust Line damper actuator, 20 Nm, AC/DC 24 V
RobustLine damper actuator for adjusting
dampers in HVAC plants, comparable industrial
plants and technical building installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close, 3-point
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation

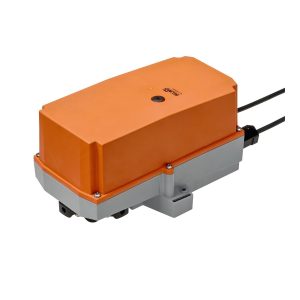

SM230PSR, RobustLine damper actuator, 20 Nm, AC 100…240 V, 2…10 V
Modulating RobustLine damper actuator for
adjusting dampers in HVAC plants,
comparable industrial plants and technical
building installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC 100…240 V
• Control modulating 2…10 V
• Position feedback 2…10 V
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
SM230P-S, RobustLine damper actuator, 20 Nm, AC 100…240 V
RobustLine damper actuator for adjusting
dampers in HVAC plants, comparable
industrial plants and technical building
installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC 100…240 V
• Control Open/close, 3-point
• with integrated auxiliary switch
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
SR24A Rotary actuator, Open-close, 3-point, AC/DC 24 V, 20 Nm
Rotary actuator for ball valves
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
SFA-S2 Spring-return actuator, Open-close, AC 24…240 V / DC 24…125 V, 20 Nm, with 2 auxiliary switches
Spring-return actuator with emergency control function for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC 24…240 V / DC 24…125 V
• Control Open-close
• with 2 integrated auxiliary switches
