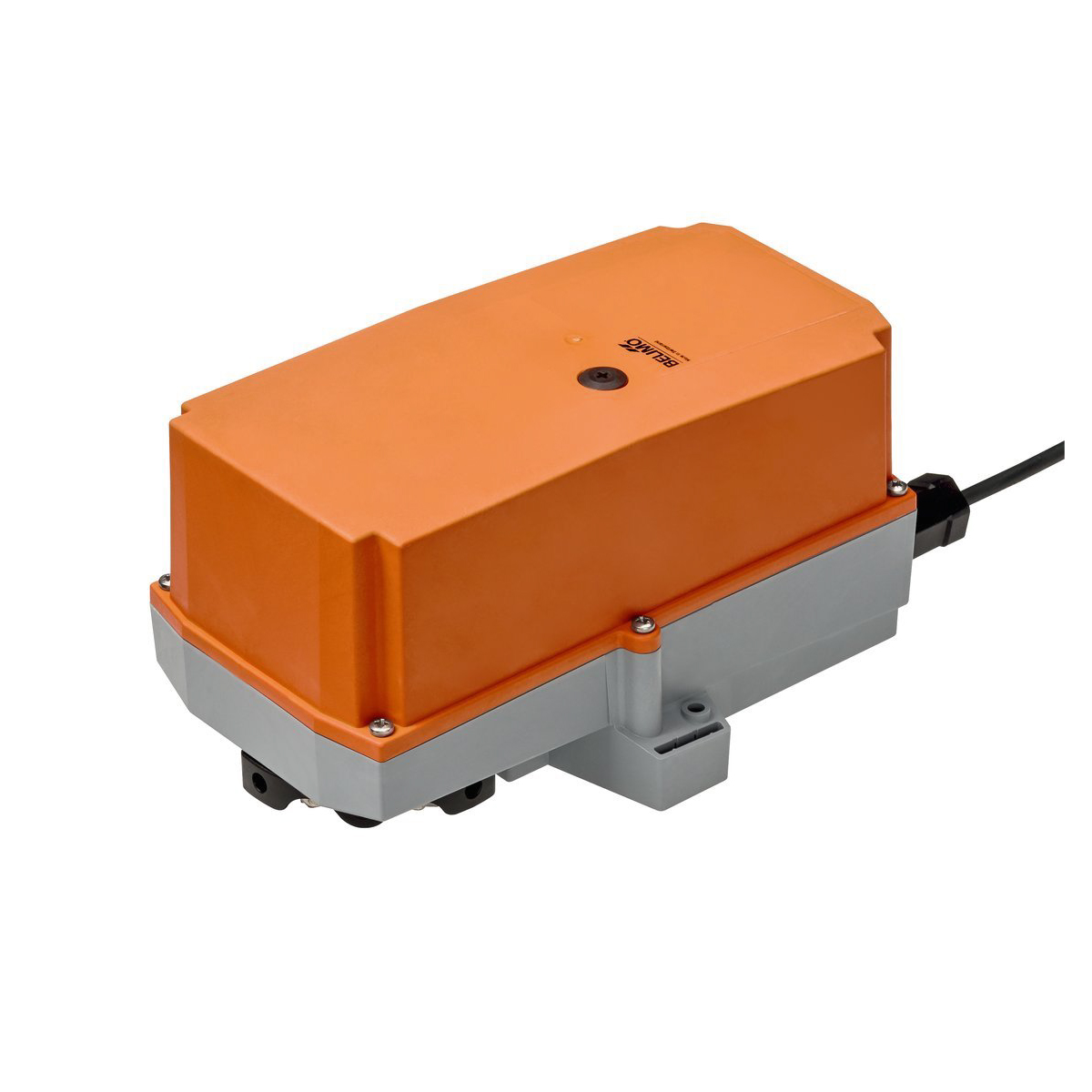

SM24P-S, Robust Line damper actuator, 20 Nm, AC/DC 24 V
RobustLine damper actuator for adjusting
dampers in HVAC plants, comparable
industrial plants and technical building
installations
• Air damper size up to approx. 4 m²
• Torque motor 20 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close, 3-point
• with integrated auxiliary switch
• Optimum protection against corrosion and
chemical influences, UV radiation, damp and
condensation
สั่งซื้อสินค้า
| Emergency control function | RobustLine damper actuator |
|---|---|
| Air damper size up to approx | 4 m² |
| Nominal voltage | AC/DC 24 V |
| Nominal torque | |
| Control type | 3-point, Open-close |
