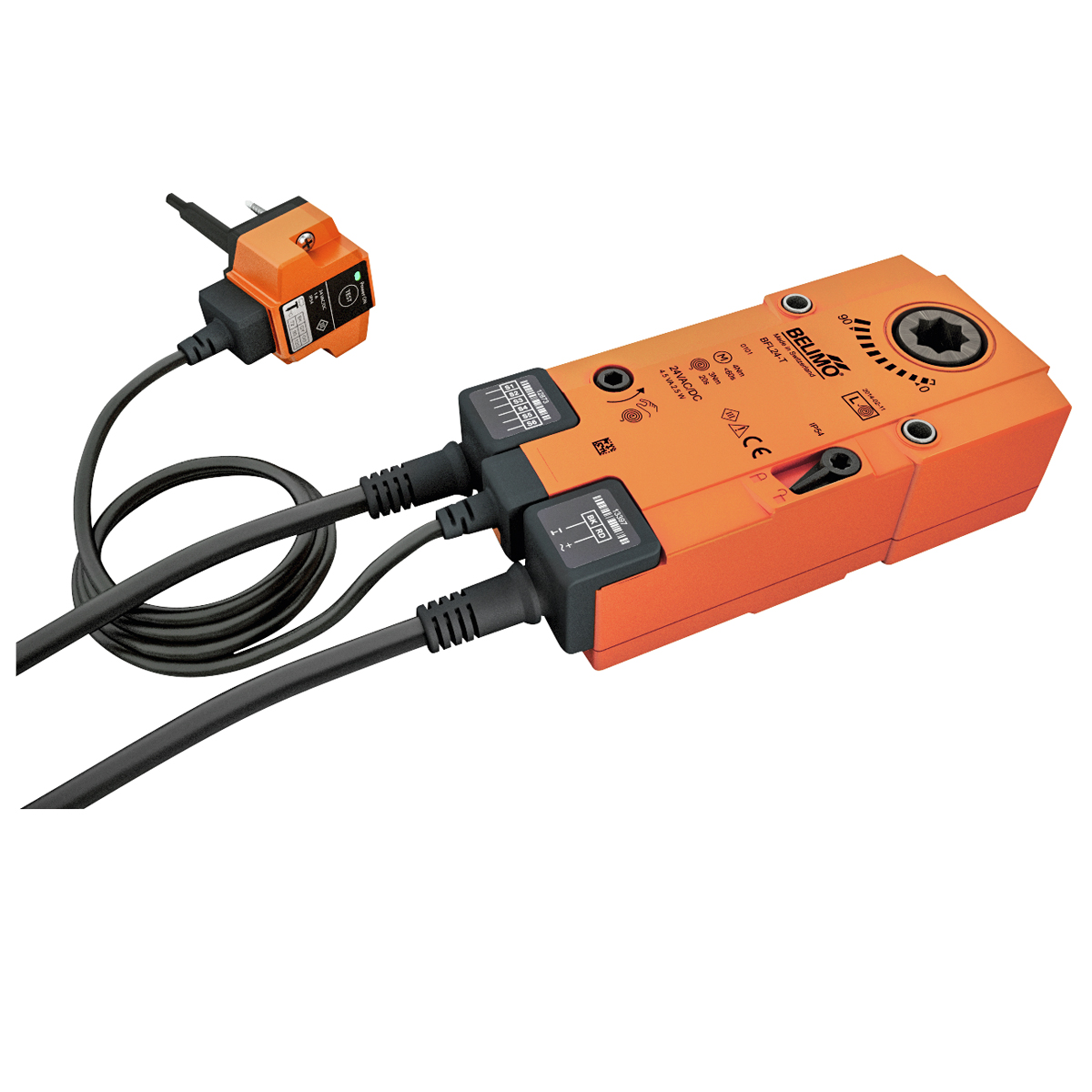

BFN24-T-ST/500,Fire damper actuator, 9 Nm, AC/DC 24 V

Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems, with connection plugs
for simple integration in control and monitoring
systems or bus networks via communication
and power supply units
• Torque motor 9 Nm / 7 Nm
• Nominal voltage AC/DC 24 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm,
continuous hollow shaf
