SMQ24G Damper actuator, IP66, Open-close, AC/DC 24 V, 16 Nm, Running time motor 7 s Damper actuator in the IP66 protective housing for adjusting dampers in industrial plants and in technical building installations • Air damper size up to approx. 3.2 m² • Nominal torque 16 Nm • Nominal voltage AC/DC 24 V • Control Open-close (unsuitable for 3-point controls) • Running time motor 7 s • Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater ex works) อ่านเพิ่ม
GM230G-T Damper actuator, IP66, AC 100 … 240 V, 40 Nm Damper actuator in the IP66 protective housing for adjusting air dampers in industrial plants and in technical building installations • For air dampers up to approx. 8 m2 • Torque 40 Nm • Nominal voltage AC 100 … 240 V • Control: Open-close Optimum weather protection for outdoor applications อ่านเพิ่ม
GM24G-T Damper actuator, IP66, AC/DC 24 V, 40 Nm Damper actuator in the IP66 protective housing for adjusting air dampers in industrial plants and in technical building installations • For air dampers up to approx. 8 m2 • Torque 40 Nm • Nominal voltage AC/DC 24 V • Control: Open-close Optimum weather protection for outdoor applications อ่านเพิ่ม
GM24G-SR-T Damper actuator, IP66, Modulating, AC/DC 24 V, 40 Nm Modulating damper actuator for adjusting dampers in technical building installations • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control Modulating DC (0)2…10 V • Position feedback DC 2…10 V • Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater ex works) อ่านเพิ่ม
GM24G-MF-T Damper actuator, IP66, parameterisable, Modulating, AC/DC 24 V, 40 Nm Parameterisable damper actuator in the IP66 protective housing for adjustment of dampers in industrial plants and building installations • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control Modulating DC (0)2…10 V Variable • Position feedback DC 2…10 V Variable • Optimum weather protection for use outdoors (for use in ambient temperatures up to –40°C, there is a separate actuator available with built-in heater ex works) อ่านเพิ่ม
NKQ24A-SZ SuperCap actuator, modulating, AC/DC 24 V, 6 Nm, Running time motor 4 s Modulating SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 1.2 m² • Nominal torque 6 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)0.5…10 V • Position feedback DC 0.5…10 V • Running time motor 4 s • Design life SuperCaps: 15 years อ่านเพิ่ม
NKQ24A-SR SuperCap actuator, modulating, AC/DC 24 V, 6 Nm, Running time motor 4 s Modulating SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 1.2 m² • Nominal torque 6 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)2…10 V • Position feedback DC 2…10 V • Running time motor 4 s • Design life SuperCaps: 15 years อ่านเพิ่ม
NKQ24A-MF SuperCap actuator, parameterisable, modulating, AC/DC 24 V, 6 Nm, Running time motor 4 s Parameterisable SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 1.2 m² • Nominal torque 6 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)2…10 V Variable • Position feedback DC 2…10 V Variable • Running time motor 4 s Variable • Design life SuperCaps: 15 years อ่านเพิ่ม
NKQ24A-1 SuperCap actuator, Open-close, AC/DC 24 V, 6 Nm, Running time motor 4 s SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 1.2 m² • Nominal torque 6 Nm • Nominal voltage AC/DC 24 V • Control Open-close • Running time motor 4 s • Design life SuperCaps: 15 years อ่านเพิ่ม
GK24A-SZ SuperCap actuator, modulating, AC/DC 24 V, 40 Nm Modulating SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)0.5…10 V • Position feedback DC 0.5…10 V • Design life SuperCaps: 15 years อ่านเพิ่ม

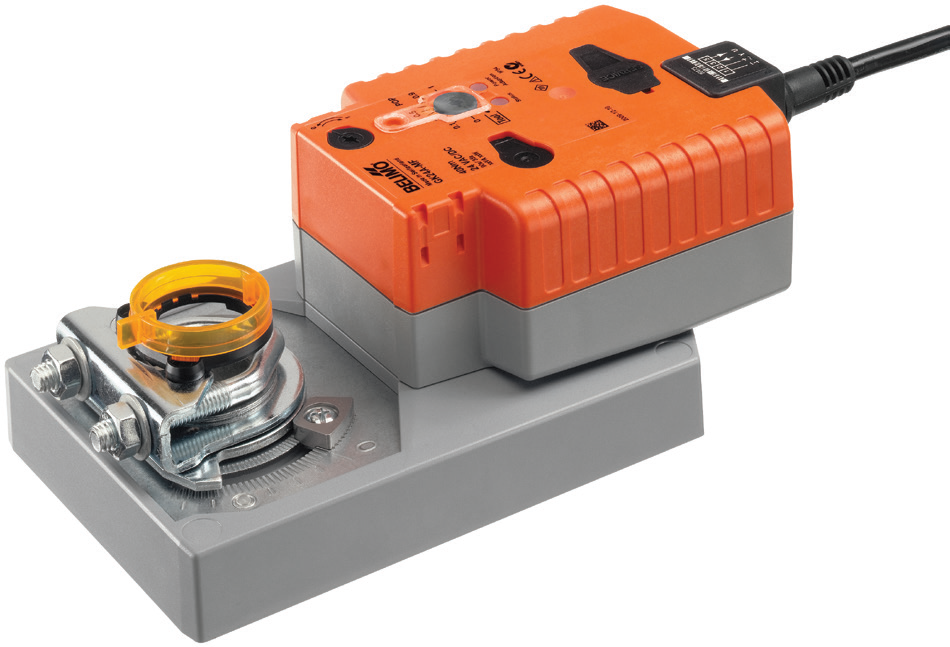

GK24A-SR SuperCap actuator, modulating, AC/DC 24 V, 40 Nm Modulating SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)2…10 V • Position feedback DC 2…10 V • Design life SuperCaps: 15 years อ่านเพิ่ม
GK24A-MP SuperCap actuator, modulating, communicative, AC/DC 24 V, 40 Nm, Communication via Belimo MP-Bus Parameterisable SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)2…10 V Variable • Position feedback DC 2…10 V Variable • Design life SuperCaps: 15 years อ่านเพิ่ม
GK24A-MF SuperCap actuator, parameterisable, modulating, AC/DC 24 V, 40 Nm Parameterisable SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control modulating DC (0)2…10 V Variable • Position feedback DC 2…10 V Variable • Design life SuperCaps: 15 years อ่านเพิ่ม
GK24A-1 SuperCap actuator, Open-close, AC/DC 24 V, 40 Nm SuperCap rotary actuator with emergency control function and extended functionalities for adjusting dampers in technical building installations and in laboratories • Air damper size up to approx. 8 m² • Nominal torque 40 Nm • Nominal voltage AC/DC 24 V • Control Open-close • Design life SuperCaps: 15 years อ่านเพิ่ม
CM24K-T-R Damper actuator, Open-close, DC 24 V, 2 Nm Damper actuator for module SKM230-T-B12 for adjusting dampers in technical building installations • Air damper size up to approx. 0.4 m² • Nominal torque 2 Nm • Nominal voltage DC 24 V • Control Open-close via Module SKM230-T-B12 • Power off reserve function • Spindle driver Universal spindle clamp 6…12.7 mm อ่านเพิ่ม
CM24K-T-L Damper actuator, Open-close, DC 24 V, 2 Nm Damper actuator for module SKM230-T-B12 for adjusting dampers in technical building installations • Air damper size up to approx. 0.4 m² • Nominal torque 2 Nm • Nominal voltage DC 24 V • Control Open-close via Module SKM230-T-B12 • Power off reserve function • Spindle driver Universal spindle clamp 6…12.7 mm อ่านเพิ่ม
