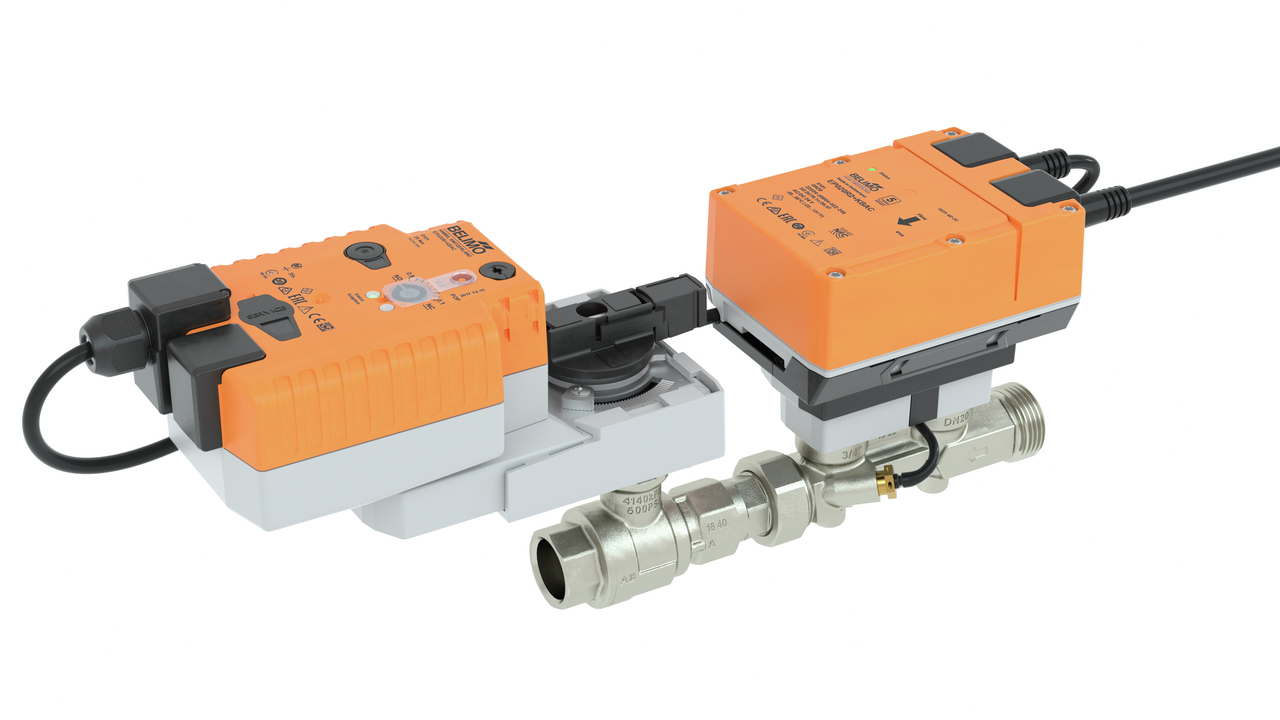

EP..R2+KBAC, Characterised control valve with sensoroperated flow control with fail-safe, 2-way, Internal and external thread, PN 25 (EPIV)
Characterised control valve with sensoroperated flow control with fail-safe, 2-way,
Internal and external thread, PN 25 (EPIV)
• Nominal voltage AC/DC 24 V
• Control modulating, communicative, hybrid
• For closed cold and warm water systems
• For modulating control of air-handling and
heating systems on the water side
• Communication via Belimo MP-Bus or
conventional control
• Conversion of active sensor signals and
switching contacts
• Measurement of the fluid temperature
