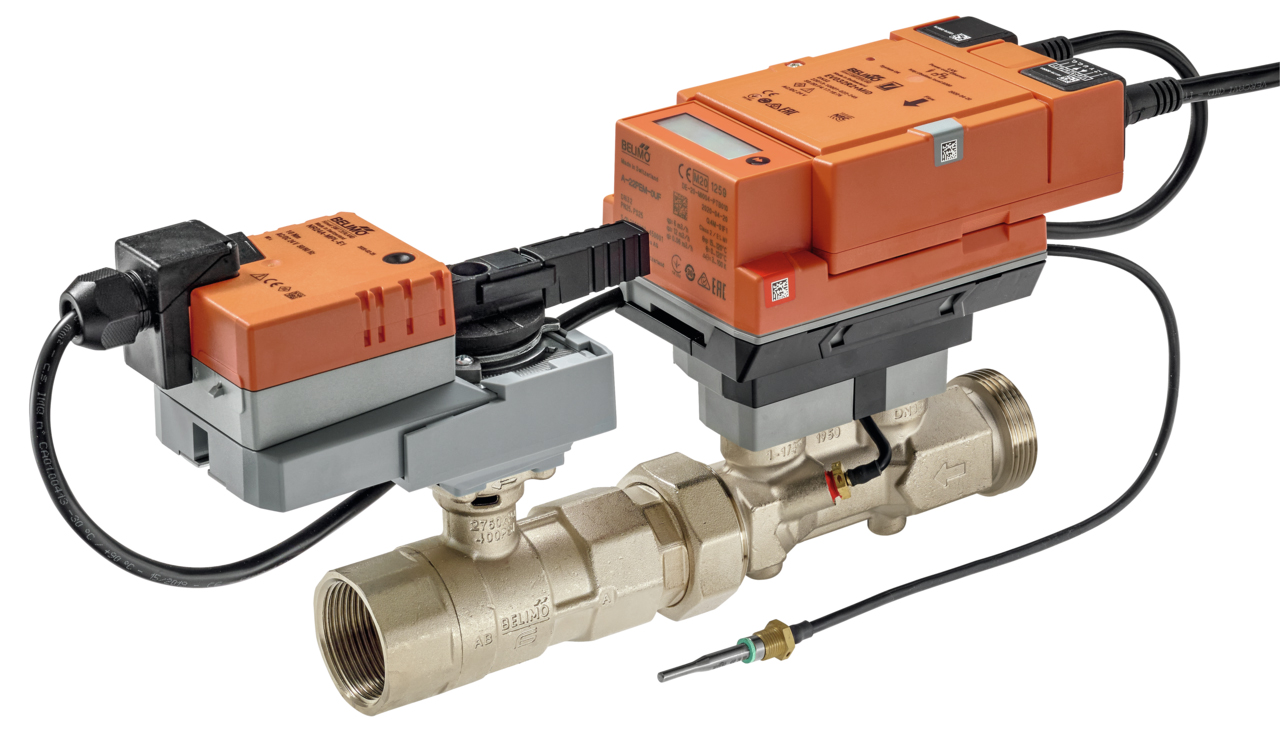

EV..R2+MID, ENERGY VALVE, Characterised control valve with thermal energy meter, certified for heating applications according to MID, power and energy monitoring function, 2-way, internal thread, PN 25
Characterised control valve with thermal
energy meter, certified for heating
applications according to MID, fulfills the
requirements of EN 1434. Sensor-operated
flow rate or power control, power and energy
monitoring function, 2-way, internal thread,
PN 25
• Nominal voltage AC/DC 24 V
• Control modulating, communicative, hybrid
• For closed cold and warm water systems
• For modulating control of air-handling and
heating systems on the water side
• Ethernet 10/100 Mbit/s, TCP/IP, integrated
web server
• Communication via BACnet, Modbus, Belimo
MP-Bus or conventional control
• PoE (Power over Ethernet) Power supply
possible
• Conversion of sensor signals
สั่งซื้อสินค้า
สินค้าที่เกี่ยวข้อง
Damper actuator for operating
air control dampers in ventilation
and air-conditioning systems for
building services installations
• For air control dampers up to
approx. 2 m2
• Torque 10 Nm
• Nominal voltage AC 100 … 240 V
• Control: Open-close or 3-point
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 2 m²
• Nominal torque 10 Nm
• Nominal voltage AC/DC 24 V
• Control Open-close, 3-point
• With integrated feedback potentiometer
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• Running time motor 35 s
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
