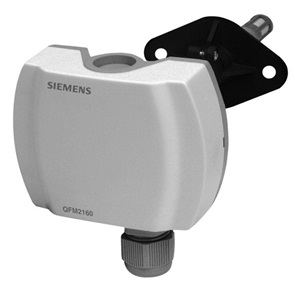

Siemens QFM21.. Duct sensor for rel. humidity / temperature
Siemens QFM21.. Duct sensor for rel. humidity / temperature
Device type QFM21..
Designation Duct sensors for humidity and
temperature
Product range SymaroTM
สั่งซื้อสินค้า
สินค้าที่เกี่ยวข้อง
Siemens Modulating refrigerant valves with magnetic actuator, PN 32 M3FK..LX.. hermetically sealed, for condenser control
- Mixing or straight-through valves with magnetic actuator for modulating
capacity control of condensers.
? Short positioning time (approx. 1 s)
? High resolution
? High rangeability
? Hermetically sealed
? Versatile electrical interface
? Friction-free
? Port 1 -> 3 closed when de-energized
? Robust and maintenance-free
Siemens MXG461B.. Modulating control valves with magnetic actuators, PN 16
Short positioning time (< 2 s), high resolution (1 : 1000)
? Selectable valve characteristic: equal-percentage or linear
? High rangeability
? Operating voltage AC / DC 24 V
? Selectable standard signal inputs DC 0/2…10 V or DC 0/4…20 mA
? DC 0…20 V Phs phase-cut signal input for Staefa controllers
? Indication of operating state, visible from the outside
? Accurate position feedback signal by inductive stroke measurement
? Spring return facility: A ? AB closed when deenergized
? Low friction, robust and maintenance-free
? Including fittings
Siemens MXG461.. Modulating control valves with magnetic actuators, PN 16
Fast positioning time (<2 s), high-resolution stroke (1 : 1000), high rangeability
? Equal-percentage or linear valve characteristic (user-selected)
? Operating voltage AC / DC 24 V
? Switch-selected control signal DC 0/2…10 V or DC 4…20 mA
? DC 0…20 V phase cut control signal with SEZ91.6 external interface
? Indication of operating state, position feedback and manual control
? Wear-free inductive stroke measurement
? Fail-safe feature: A ? AB closed when de-energized
? Low friction, robust, no maintenance required
Siemens ZM100/A Electronic connection for valves with magnetic actuator
Terminal housing for control of valves with mag-netic actuator
•
Control with choice of positioning signals or direct control
AC 24 V
DC 0…10 V
DC 4…20 mA
DC 0…20 V Phs
Siemens QFM31..D Duct sensors for rel. humidity / temperature for demanding requirements
• • Operating voltage AC 24 V / DC 13.5…35 V
• Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
• Very high measuring accuracy across the entire measuring range
• Function test
• Capacitive humidity measurement
• Range of use −40…+70 °C / 0…100 % r. h. with LCD display −25…+70 °C / 0…100 % r.h.
Modulating refrigerant valves with magnetic actuator, PS45
MVL661..-..
Hermetically sealed, for safety refrigerants
· One valve type for expansion, hot-gas and suction throttle applications
· Hermetically sealed towards outside
· Selectable standard interface DC 0/2…10 V or DC 0/4…20 mA
· High resolution and control accuracy
· Precise positioning control and position feedback signal
· Short positioning time (< 1 s)
· Closed when deenergized
· Robust and maintenance-free
· Six valve sizes with kvs values from 0.25 to 12 m³/h
Use
The MVL661..-.. refrigerant valve is designed for modulating control of refrigerant
circuits including chillers and heat pumps. It can be used in expansion, hot-gas and
suction throttle applications as well as with all commonly used safety refrigerants (R22,
R134a, R227ea, R404A, R407C, R410A, etc.) and R744 (CO2).
