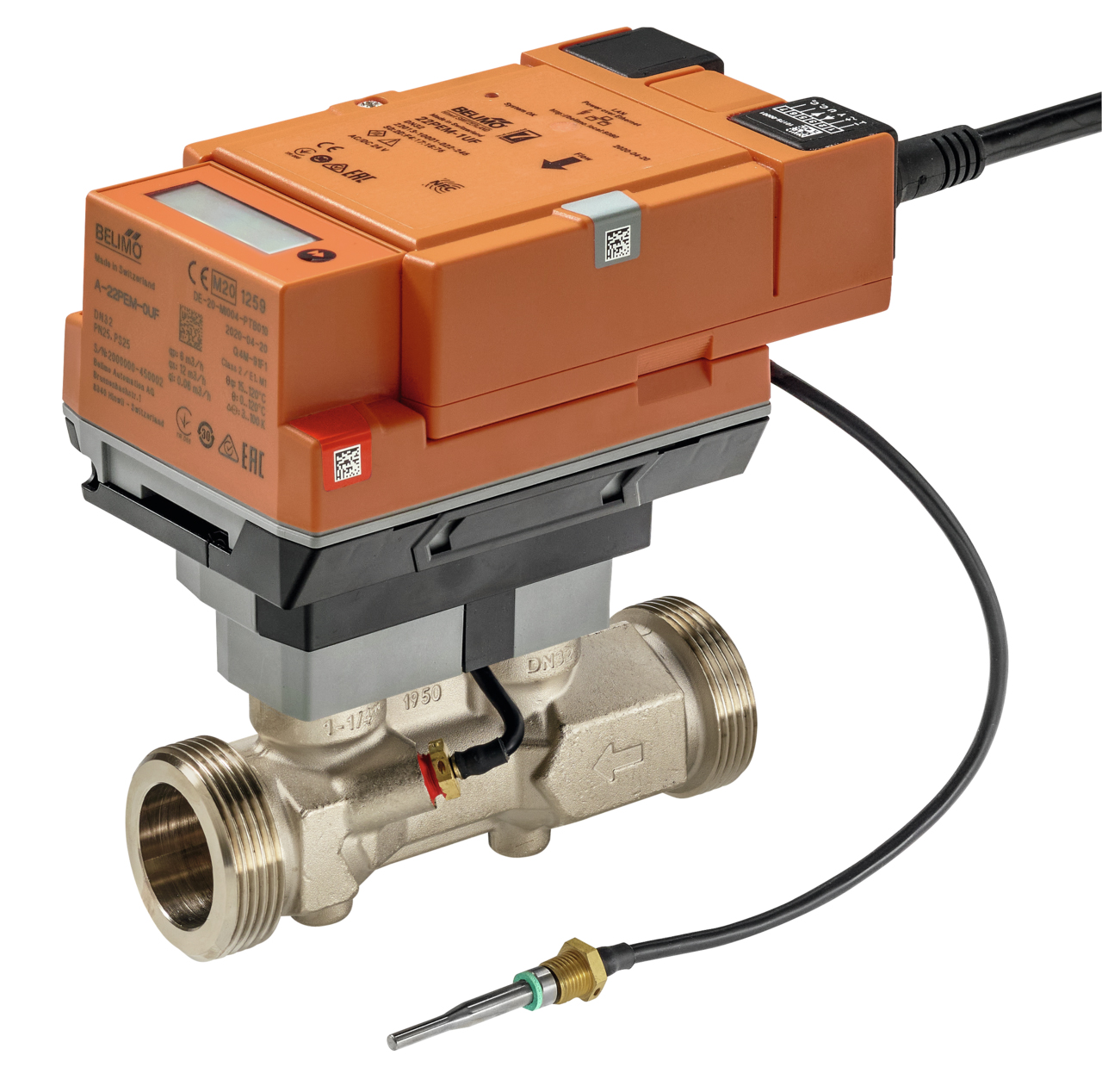

22PEM-1U.., BELIMO, Thermal energy meter MID / EN 1434, AC/DC 24 V
Thermal energy meter
Thermal energy meter for measuring energy
in a heating or cooling circuit. The device is
certified for heating applications according to
MID and fulfills the requirements of EN1434.
If required, the power supply can be provided
via PoE (Power over Ethernet).
Communication is provided via BACnet,
Modbus or MP-Bus. Configuration is done
with the Belimo Assistant App via NFC
technology or via web server. The
commissioning report can be generated
automatically. Connection to the Belimo
Cloud is possible.
