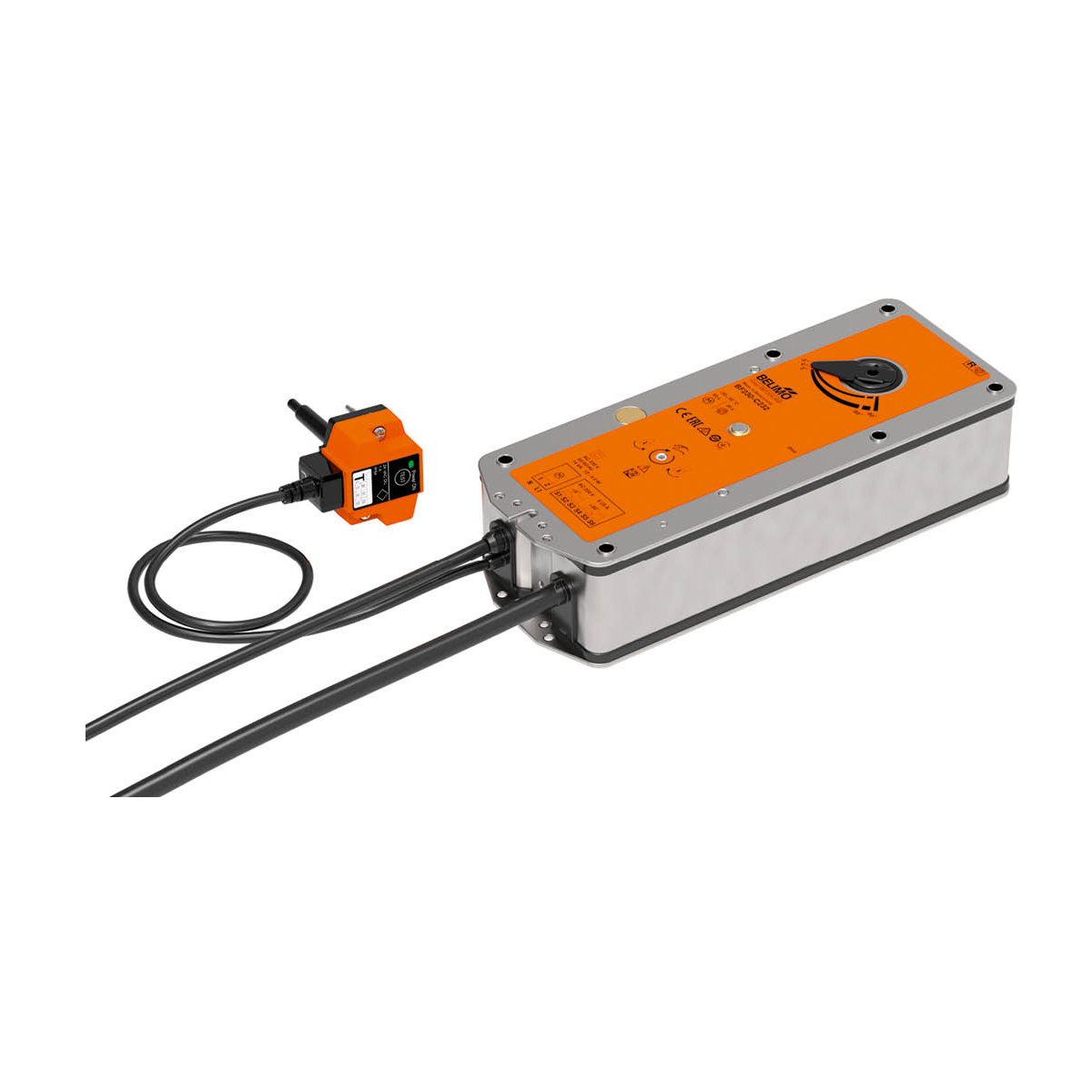

BF230-TN-ST, Fire damper actuator, 18 Nm, AC 230 V
Spring-return actuator, combined with
thermoelectric tripping device BAT (72°C), for
fire and smoke dampers 90° in ventilation and
air-conditioning systems, with connection plugs
for simple integration in control and monitoring
systems or bus networks via communication
and power supply units
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC 230 V
• Control Open/close
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
สั่งซื้อสินค้า
| Emergency control function | Fire damper actuator |
|---|---|
| Nominal torque | |
| Nominal voltage | AC 230 V |
| Control type | Open-close |
