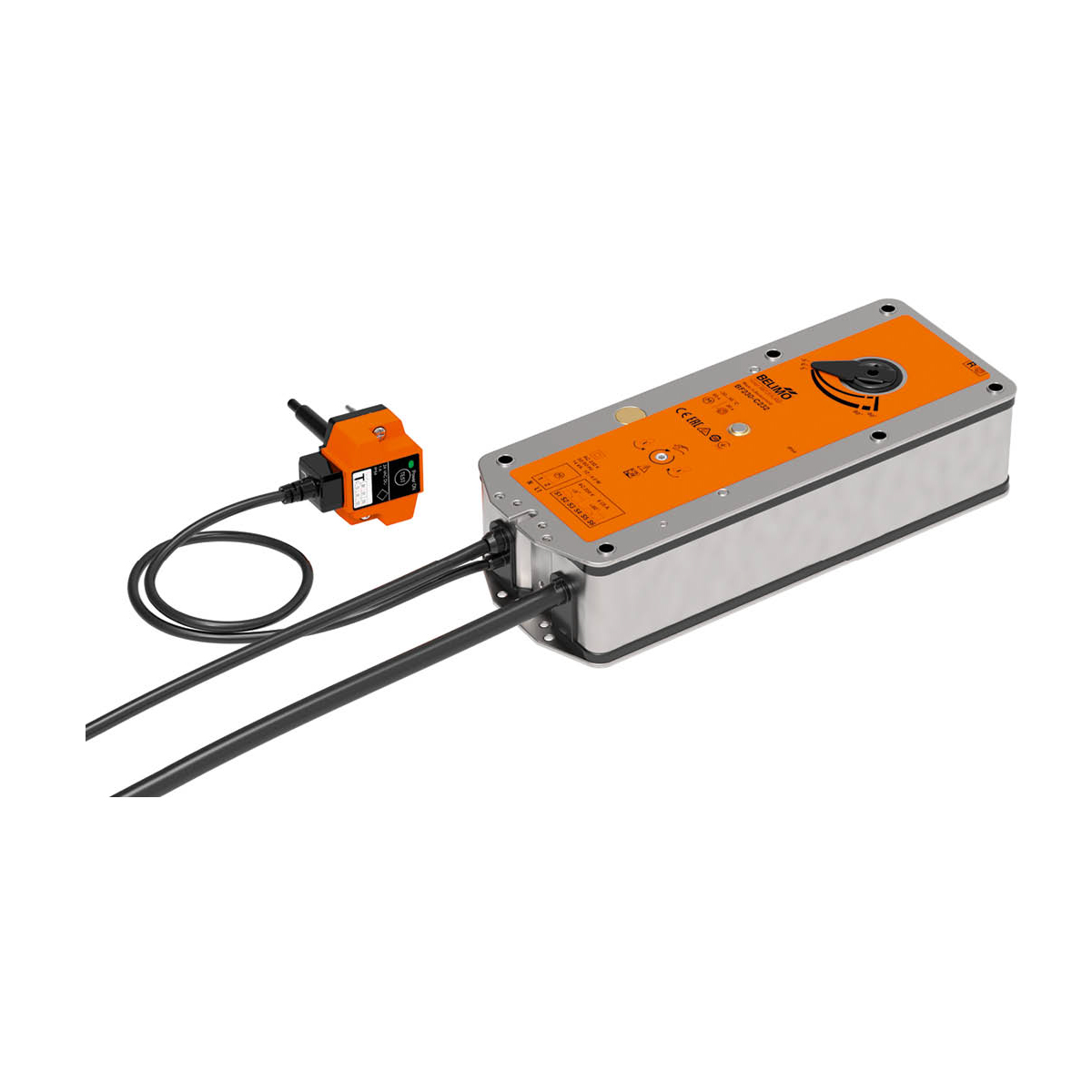

BF24-SR-TN, Fire damper actuator, 18 Nm, AC/DC 24 V, 2…10 V
Spring-return actuator for fire and smoke
dampers 90° in ventilation and air-conditioning
systems
• Torque motor 18 Nm / 12 Nm
• Nominal voltage AC/DC 24 V
• Control modulating
• Mechanical interface Form fit 12×12 mm, noncontinuous hollow shaft
สั่งซื้อสินค้า
| Emergency control function | Fire damper actuator |
|---|---|
| Nominal torque | |
| Nominal voltage | AC/DC 24 V |
| Control type | DC 2…10 V |
สินค้าที่เกี่ยวข้อง
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 4 m²
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control modulating DC (0)2…10 V
• Position feedback DC 2…10 V
EV..R+KBAC
Characterised control valve with sensor-operated flow rate or power control, power and energy-monitoring function, 2-way, Internal thread, PN 16 (Energy Valve),
• Nominal voltage AC/DC 24 V
• Control modulating, communicative
• For closed cold and warm water systems
• For modulating control of air-handling and heating systems on the water side
• Ethernet 10/100 Mbit/s, TCP/IP, integrated web server
• Communication via BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, Belimo MP-Bus or conventional control
• Design life SuperCaps: 15 years
EV..R+BAC
Characterised control valve with sensor-operated flow rate or power control, power and energy-monitoring function, 2-way, Internal thread, PN 16 (Energy Valve)
• Nominal voltage AC/DC 24 V
• Control modulating, communicative
• For closed cold and warm water systems
• For modulating control of air-handling and heating systems on the water side
• Ethernet 10/100 Mbit/s, TCP/IP, integrated web server
• Communication via BACnet IP, BACnet MS/TP, Modbus TCP, Modbus RTU, Belimo MP-Bus or conventional control
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 1 m²
• Nominal torque 5 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• Running time motor 35 s
Damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC 230 V
• Control Open-close, 3-point
• Running time motor 35 s
Modulating damper actuator for adjusting dampers in technical building installations
• Air damper size up to approx. 0.4 m²
• Nominal torque 2 Nm
• Nominal voltage AC 230 V
• Control Modulating DC (0)2…10 V
• Position feedback DC 2…10 V
• Running time motor 35 s
