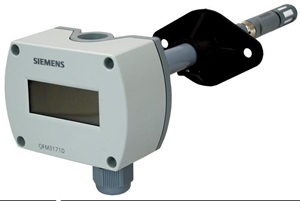

Siemens QFM31..D Duct sensors for rel. humidity / temperature for demanding requirements
Siemens QFM31..D Duct sensors for rel. humidity / temperature for demanding requirements
• • Operating voltage AC 24 V / DC 13.5…35 V
• Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
• Very high measuring accuracy across the entire measuring range
• Function test
• Capacitive humidity measurement
• Range of use −40…+70 °C / 0…100 % r. h. with LCD display −25…+70 °C / 0…100 % r.h.
