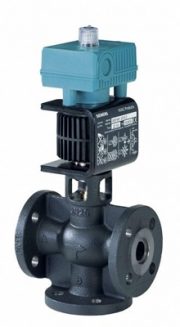

Siemens MXG461S..Modulating control valves with magnetic actuator‚ PN 16
Siemens MXG461S..Modulating control valves with magnetic actuator‚ PN 16
Fast positioning time (<2 s), high-resolution stroke (1 : 1000)
∂ Selectable valve characteristic: equal-percentage or linear
∂ High rangeability
∂ Operating voltage AC/ DC 24 V
∂ Switch-selected control signal DC 0/2…10 V or DC 4…20 mA
∂ Wear-free inductive stroke measurement
∂ Robust, no maintenance required
∂ Spring-return function: A ↑ AB closed when de-energized
∂ Positioning control, position feedback and manual control
∂ Parts in contact with medium in CrNi steel
∂ Applications with demineralized water upon request
สั่งซื้อสินค้า
สินค้าที่เกี่ยวข้อง
Siemens VPI46…Combi valves (PICV) PN25, internally threaded
systems
With integrated differential pressure controller
DN 10…DN32: Valve body made of dezincification resistant hot-pressed
brass (DZR)
DN 40…DN 50: Housing made of spheroidal graphite iron
Volumetric flow 30… 11500 l/h,
Differential pressure range 15…600 kPa
Internally threaded Rp conforming to ISO 7-1
Externally threaded G conforming to ISO 228-1
Version with pressure test points for Δp measurement (optional)
Can be equipped with electro thermal or electromotive actuators
SSA.. (3-position or DC 0…10 V)
STA..3../STP..3.. (2-position or PDM)
STA63../STP63.. (DC 0…10 V)
SAY..1P03 (3-position or DC 0…10 V)
Siemens VPP46..Combi valves (PICV) PN25, externally threaded
systems
With integrated differential pressure controller
DN 10…DN32: Valve body made of dezincification resistant hot-pressed
brass (DZR)
DN 40…DN 50: Housing made of spheroidal graphite iron
Volumetric flow 30… 11500 l/h,
Differential pressure range 15…600 kPa
Internally threaded Rp conforming to ISO 7-1
Externally threaded G conforming to ISO 228-1
Version with pressure test points for Δp measurement (optional)
Can be equipped with electro thermal or electromotive actuators
SSA.. (3-position or DC 0…10 V)
STA..3../STP..3.. (2-position or PDM)
STA63../STP63.. (DC 0…10 V)
SAY..1P03 (3-position or DC 0…10 V)
Siemens MXG461B.. Modulating control valves with magnetic actuators, PN 16
Short positioning time (< 2 s), high resolution (1 : 1000)
? Selectable valve characteristic: equal-percentage or linear
? High rangeability
? Operating voltage AC / DC 24 V
? Selectable standard signal inputs DC 0/2…10 V or DC 0/4…20 mA
? DC 0…20 V Phs phase-cut signal input for Staefa controllers
? Indication of operating state, visible from the outside
? Accurate position feedback signal by inductive stroke measurement
? Spring return facility: A ? AB closed when deenergized
? Low friction, robust and maintenance-free
? Including fittings
Siemens QFM21.. Duct sensor for rel. humidity / temperature
Device type QFM21..
Designation Duct sensors for humidity and
temperature
Product range SymaroTM
Room sensors
QFA41…
for relative humidity and temperature with calibration certificates
• Operating voltage AC 24 V / DC 13.5…35 V
• Signal output DC 0…10 V / 4…20 mA for relative humidity and temperature
• Very high measuring accuracy across the entire measuring range
• Capacitive humidity measurement
• Recalibration service
• Test function for loop test
• Range of use −40…+70 °C / 0…100 % r. h. with LCD display −25…+70 °C / 0…100 % r. h.
Use
The QFA41… sensor is used in ventilation and air conditioning plants requiring:
• Very high accuracy and reliability for measuring relative humidity and temperature
• Regular recalibration and readjustment of the sensors
Examples:
• Storage and production facilities in the paper, textiles, pharmaceutical, chemical, electronics industries, etc.
• Laboratories
• Hospitals
• Computer centers
• Greenhouses
Modulating control valves with magnetic actuator,PN 16
MVF461H..
for hot water, high temperature hot water and steam
• Short positioning time (<2 s), high resolution (1 : 1000)
• Selectable valve characteristic: Equal-percentage or linear
• High rangeability
• Selectable standard interface DC 0/2…10 V or DC 0/4…20 mA
• Phase-cut signal input for Staefa controllers
• Position control and position feedback signal
• Wear-free inductive stroke measurement
• Spring return facility: A → AB closed when deenergized
• Low friction, robust and maintenance-free
